The new PSU box is designed to optimize heat dissipation. This results in a stable LED performance, specially in outdoor conditions when used on high brightness.
Curve :-22 .5°, -20°, -17 5°, -15°,-12.5°,-10°,-7 5°,-5°,-2 5° 0°,2 5° ,5°,7.5°,10°,12.5° ,15°,17.5° ,20°, 22.5°
With a 12% weight reduction compared to the Carbon series, the CB5 MarkII offers a stronger structure, while reducing the weight. Measuring 500*500mm, the panel weighs only 7.5kg/m2; Ideal for touring in combination with frame and dolly options. The reduced weight and easy handling will lower costs on transportation and labor.
This flexible screen compare with the other screen is the adjustable angel .The curve for each screen :-22 .5°, -20°, -17 5°, -15°,-12.5°,-10°,-7 5°,-5°,-2 5° 0°,2 5° ,5°,7.5°,10°,12.5° ,15°,17.5° ,20°, 22.5°.So you can make the shape with less cabinet than the others

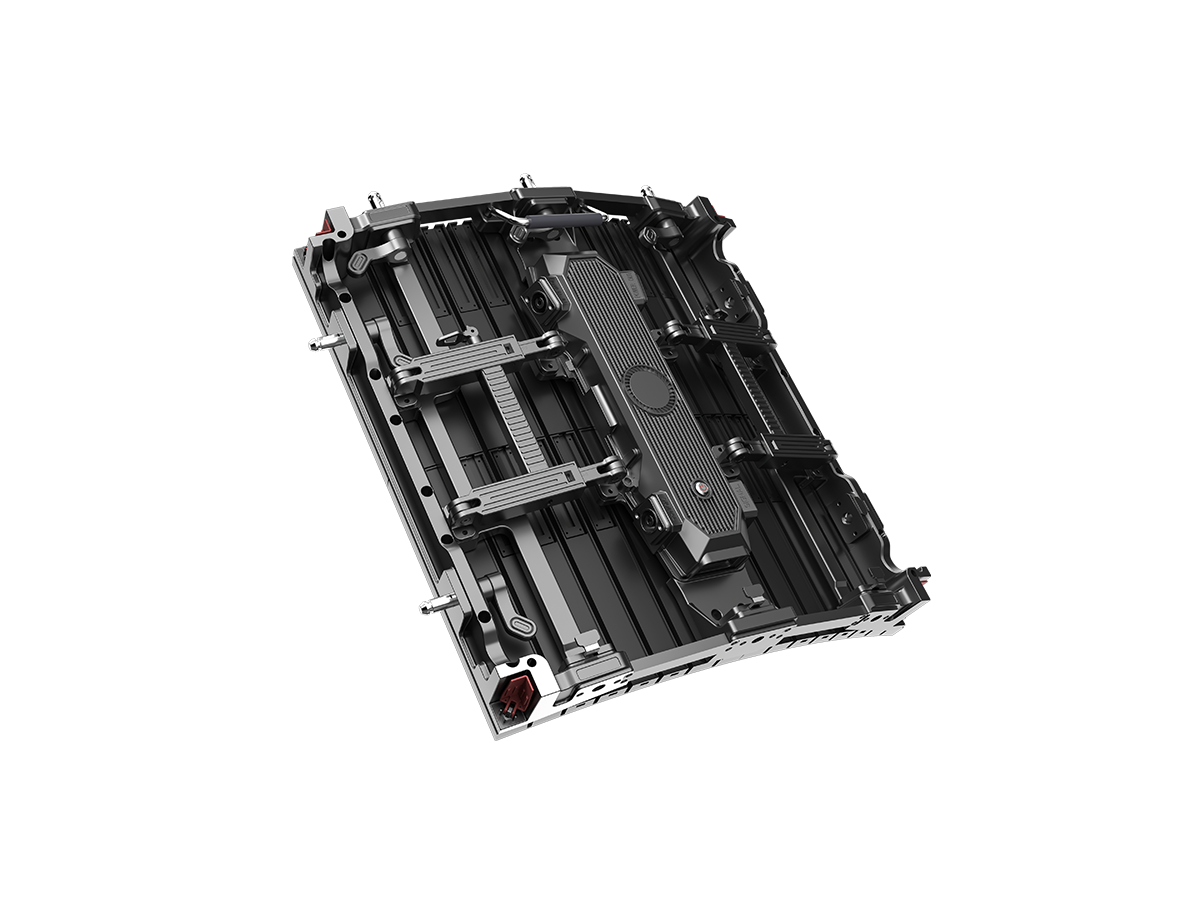

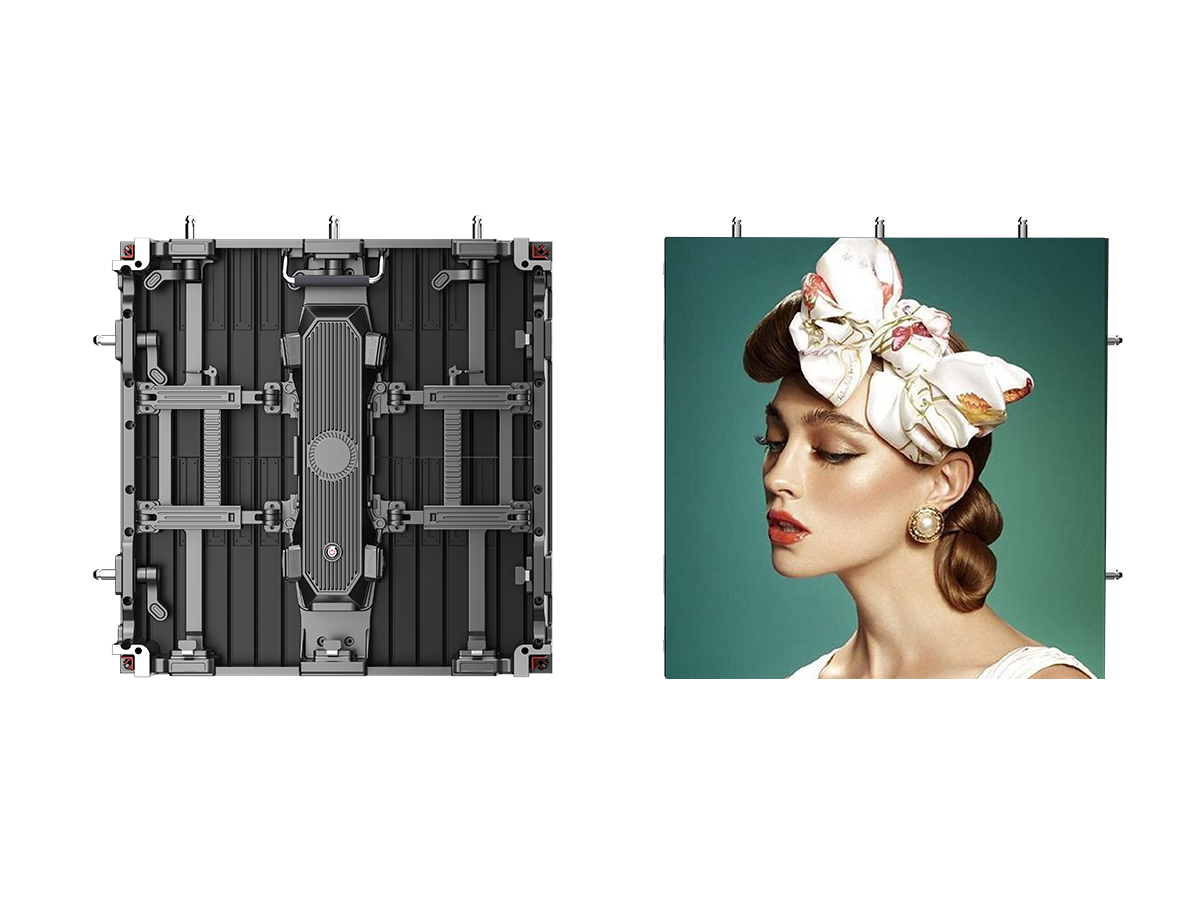

Universal Module and Mask The CB MarkII panel is easier to install and maintain. The module and mask design guarantee efficient servicing. The modules can be exchanged on each position and the mask can be snapped on and off easily.

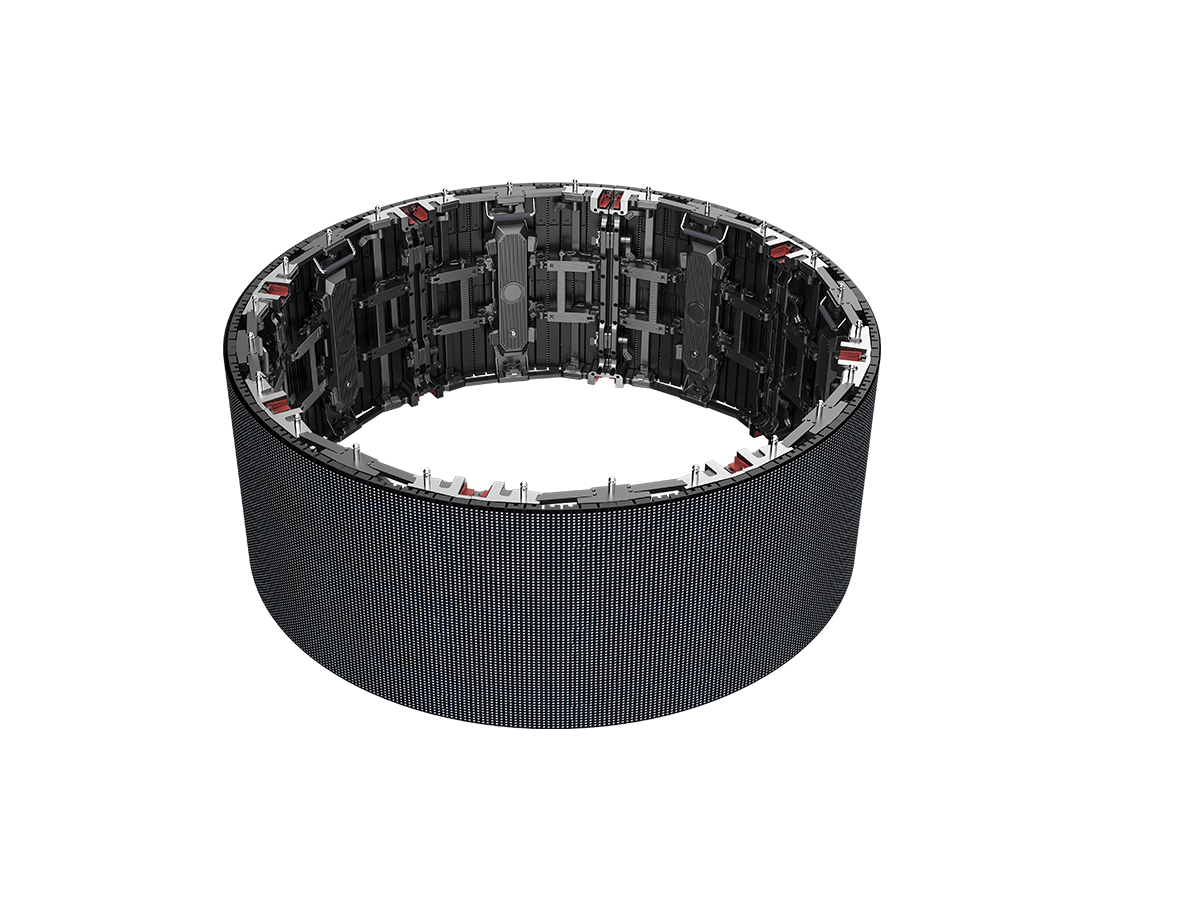

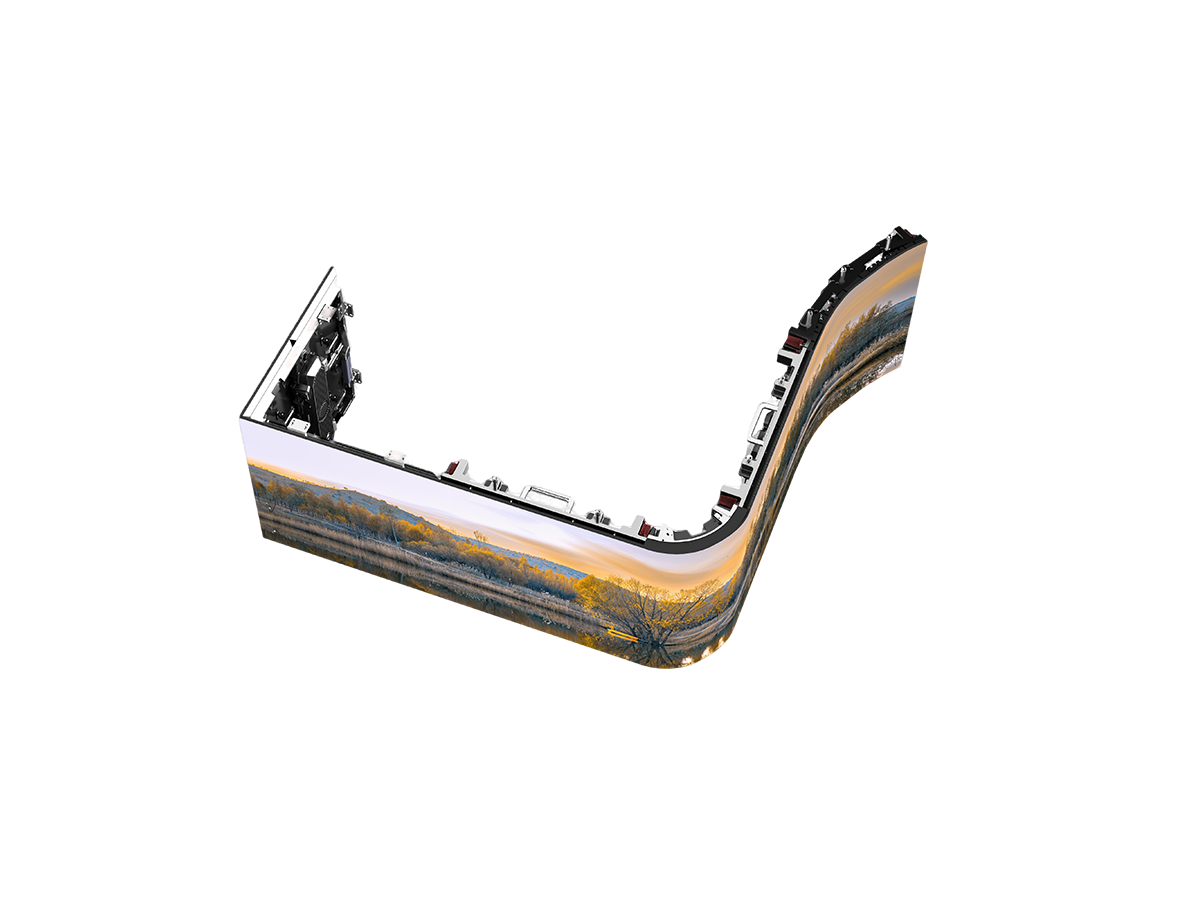

The structure of the flexible rental screen is light, thin, quick to assemble and disassemble, and supports multi-anglecorner installation.8 cabinets can beassembled into a circle.
This Screen can easily combine with the other version of the screen such as XR series conner screen .GS screen and GC 45 angel Screen to create into all different shape as you can image

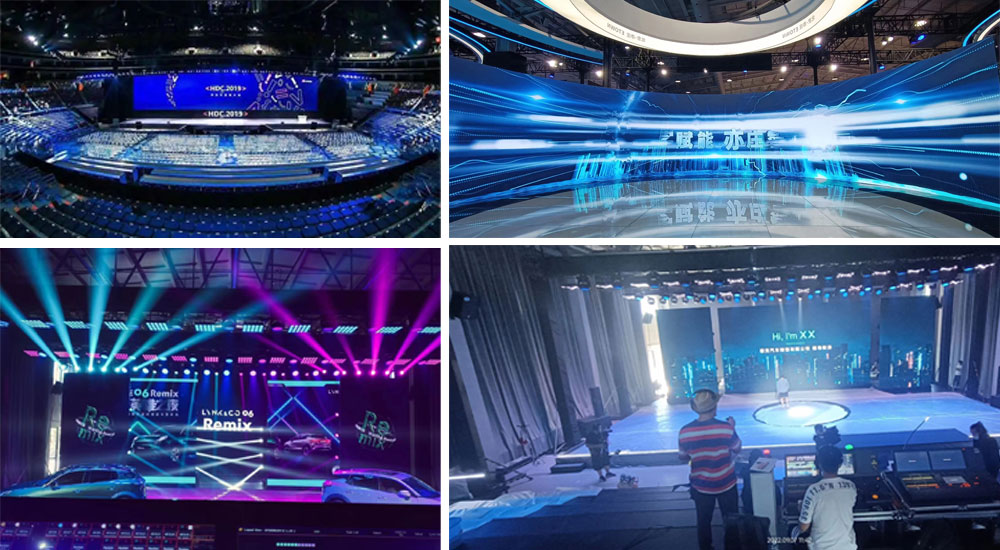

The structure ofthe flexible rental scre-en is light, thin, quick to assemble anddisassemble, and supports multi-angle corner installation.8 cabinets can beassembled into a circle. The cabinet has different installation methods, such asbeing fixed on a floor stand, a wallbracket, a hanging pole, etc. Typically used at events,exhibitions, concerts conferences.trade shows. and other temporary occasions where a high-quality visual display is required in a curved or corner installation
| Model /Item | Indoor p1.95 | indoor P2.604 | 0utdoor P2.604 | 0utdoor P2.97 | 0utdoor P3.91 |
|---|---|---|---|---|---|
| Pixel Pitch | 1.95mm | 2.604mm | 2.604mm | 2.97mm | 3.91mm |
| Lamp size | SMD1212 | SMD1415 | SMD1515 | SMD1515 | SMD1820 |
| Pixel density | 262144dots/sqm | 147456dots/sqm | 147456dots/sqm | 112896dots/sqm | 65536dots/sqm |
| Module size | W500mmxH125mm | ||||
| Module resolution | 128*128dots | 96*96dots | 96*96dots | 84*84dots | 64*64dots |
| Cabinet size | W500mmxH500mmxD75.8mm | ||||
| Cabinet resolution | 256*256dots | 192*192dots | 192*192dots | 168*168dots | 128*128dots |
| Material | Die-casting aluminum | ||||
| Cabinet Weight | 7.5kg±5% | ||||
| Curve | (Convex) -10° ,-5° ,+5° ,+10°(Concave) /0° | ||||
| Medule Maintenance | Front / Rear | ||||
| Scan method | 1/32 | 1/32 | 1/32 | 1/21 | 1/16 |
| Brightness | ≥1000cd/㎡ | ≥4500cd/㎡ | |||
| Refresh rate | 3840-7680HZ | 3840-7680HZ | |||
| Input Voltage | AC220V/50Hz or AC110V/60Hz | AC220V/50Hz or AC110V/60Hz | |||
| Power Consumption[Max] | ≤600W/㎡ | ≤800W/㎡ | |||
| Power Consumption[Ave.] | 300W/㎡~380W/㎡ | 300W/㎡~380W/㎡ | |||
| lP rating | IP31 | IP65 | |||
